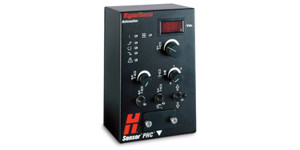

Sensor PHC

For files in additional languages, please go to the Documents Library.

Operator and instruction manuals (3)

Safety and Compliance Manual (Revision 9) (Multilingual)

Last updated 18/07/2023

Manuals/Service Information > Operator Manual (OM)

Part number: 80669C

PDF (6.42MB)

Sensor PHC Ecodesign Requirements (Revision 0) (Multilingual)

Last updated 21/04/2021

Manuals/Service Information > Operator Manual (OM)

Part number: 811310MU

PDF (246KB)

Sensor PHC Operation and Setup Guide (Revision 1)

Last updated 07/12/2010

Manuals/Service Information > Operator Manual (OM)

Part number: 806150

PDF (1.64MB)

Showing 33 of 3 documents

Show all

Specifications

For full specifications, reference the manual.

Maximum speed	5120 mm/m (200 ipm)
Range of motion	150 mm (6")
Arc voltage set-point	50 V – 210 V arc voltage set-point for arc-voltage feedback; accurate to 1 arc-volt
	Ohmic contact and stall-force initial height sense
	On/off signal provided by CNC
	Multiple cable options in various lengths available to suit different applications
* Information subject to change without notice ** User supplied display and keyboard are required

Upgrades

Sensor torch height control

ArcGlide and Sensor

Compatible with EDGE^® Connect and other CNCs, Sensor^® THC is a full-featured torch height control system that can significantly increase the productivity and profitability of your shape cutting operation. Suitable for high definition and conventional plasma applications.
